öhlins STX 36 blackline twin lengéscsillapító - 14-24 Touring

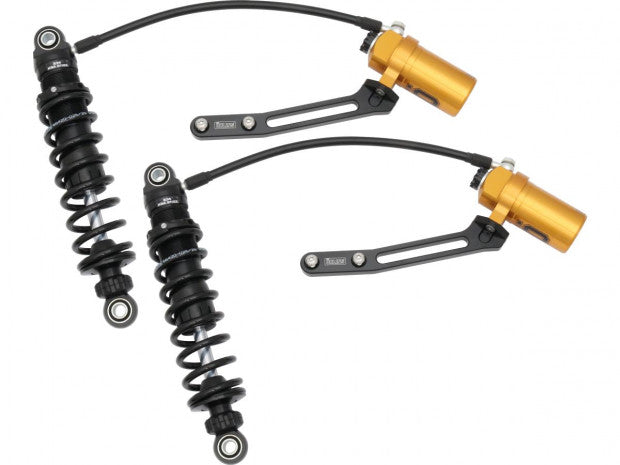

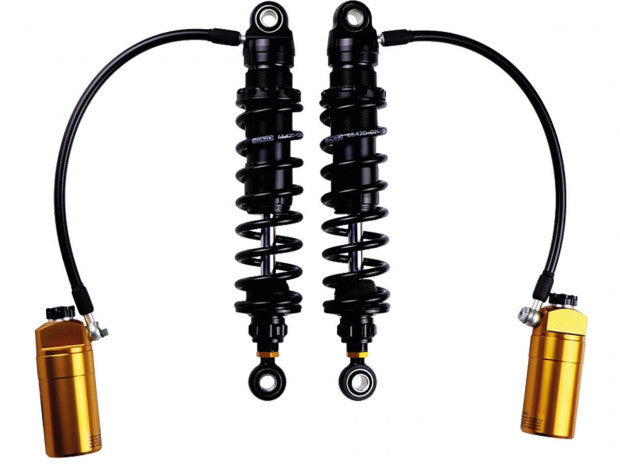

Öhlins STX 36 Blackline Twin Shock Absorber with Golden Reservoir Length: 310,5 mm, Stroke 78,5 mm, Mounted Spring: 66420-026 (26 N/mm) Blackline Gold

Fitments

14-24 Touring, (except 14 FLHRSE, 2014-202021 FLHTKSE, 15-24 FLHXSE, 15-16 FLTRUSE, 2018-2019, 21-24 FLTRXSE, 18 ANVFLHTKSE, 22 FLTRKSE, 23 FLTRKSEANV, 24 FLTRXSTSE)

Note

The Approval Document is valid for the following Models: 14-18 FLHRC, 2014-2016 FLHTCU, 14-24 FLHTK, 15-19 FLHTKL, 2015-2017 FLHXSE, 15-16 FLTRUSE, 15-23 FLHXS, 16-22 FLHR, 16-19 FLTRU, 17-23 FLTRXS, 18-24 FLHRXS, 2018-2019, 2021-2022 FLTRXSE

Articles marked with the APPROVAL-sign do not necessarily cover all H-D models and years. Before ordering please check if your bike is listed in the approval certificate. Please contact your CCE dealer or our sales support. In case of any complaints we do not grant any warranty and will not withdraw those parts.

Description

Single tube

Piston diameter: 36 mm

Monotube high pressure gas type of shock absorber with hose mounted external reservoir

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

Adjustable compression damping. Adjuster wheel or slot on the reservoir

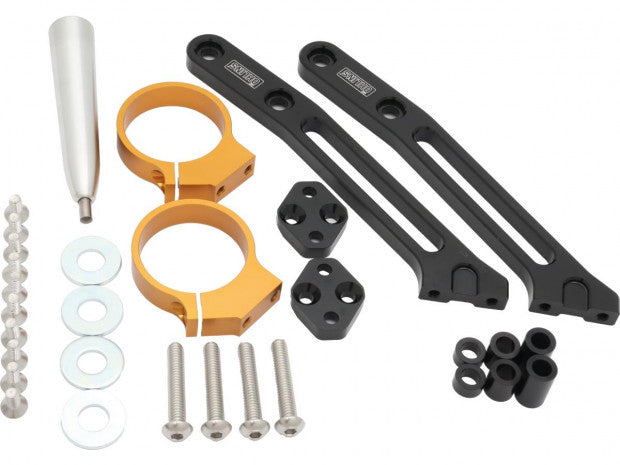

Including exposed reservoir mounting brackets

Certification

With approvali
