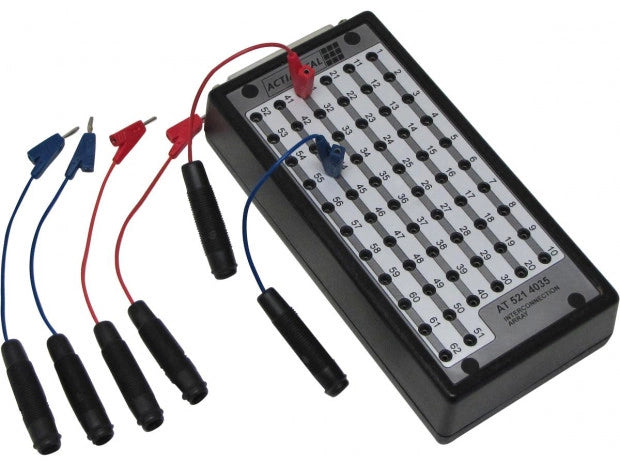

diag4bike párhuzamos diagnosztikai rendszer breakout box 62 tüske

Field of application:

Diag4Bike Parallel Diagnostic System, Breakout Box 62 Pin, for all EFI Models, several Adaptors needed

Manufacturer:

ATAL, Lesni 47, 39001 Tabor, Horky , Czech Republic, http://www.atal.cz

Description

Professional diagnostic tool for Harley-Davidson & Buell workshops and tuning centers. Parallel diagnostics is designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules. Measurements can also be made on running engines. The system consists of a set of adapter cables and a breakout box. The breakout box is inserted between the EFI module and the motorcycle’s wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clkorai arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators. Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents.
